LP-65MS Tiny V-Mount Li-ion Battery

This pocket fit size battery is designed for the applications which require compact size power, like handheld stabilizers, focus puller monitor, portable LED panel and small cameras.

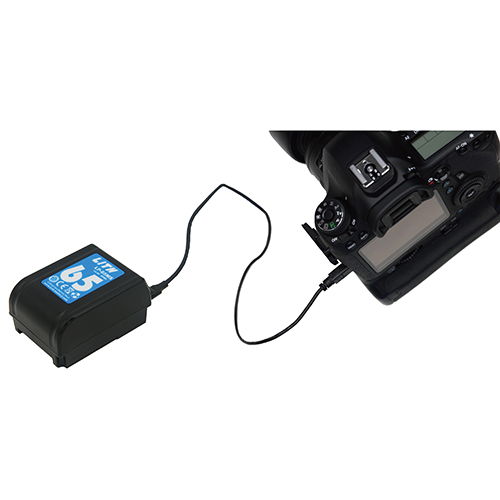

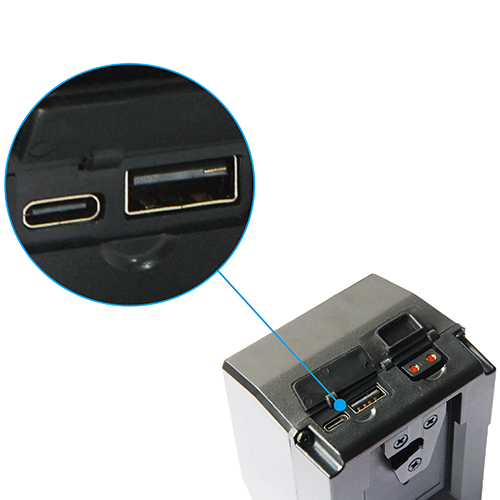

Both D-Tap,USB-A, USB-C outputs are available to power camera accessories.



◆ 1x D-tap output & charging input

◆ 1x USB 5V/2A output

◆ USB-C 65W input and output

◆ 4-step LED power indicator

◆ Wire-Free internal technic

◆ Multiple circuit protections











Specification

Model

LP-65MS

Battery Type

V-Mount

Voltage

14.8V

Capacity

65Wh/4.4Ah




Max Output



 Total

50W,3.5A

Pins

50W,3.5A

D-Tap

50W,3.5A

 USB-A

10W,2A

 USB-C

65W out  5V/9V/12V/15V/20V(Max) 3.25A

BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP

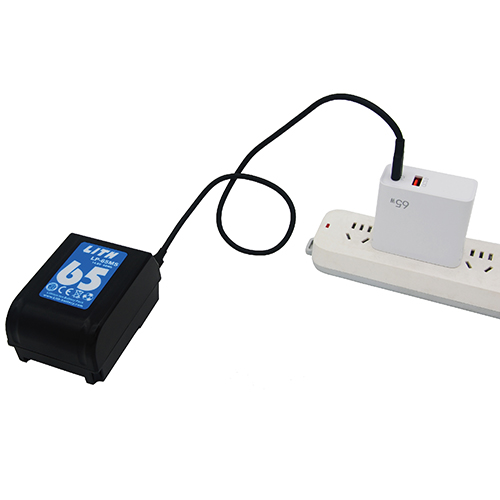

65W in 15V/20V(Max) 3.25A

Operating Temperature

-30°C ~ +50°C

Weight

0.50Kg

Dimension

102 x 75 x 50(mm)
