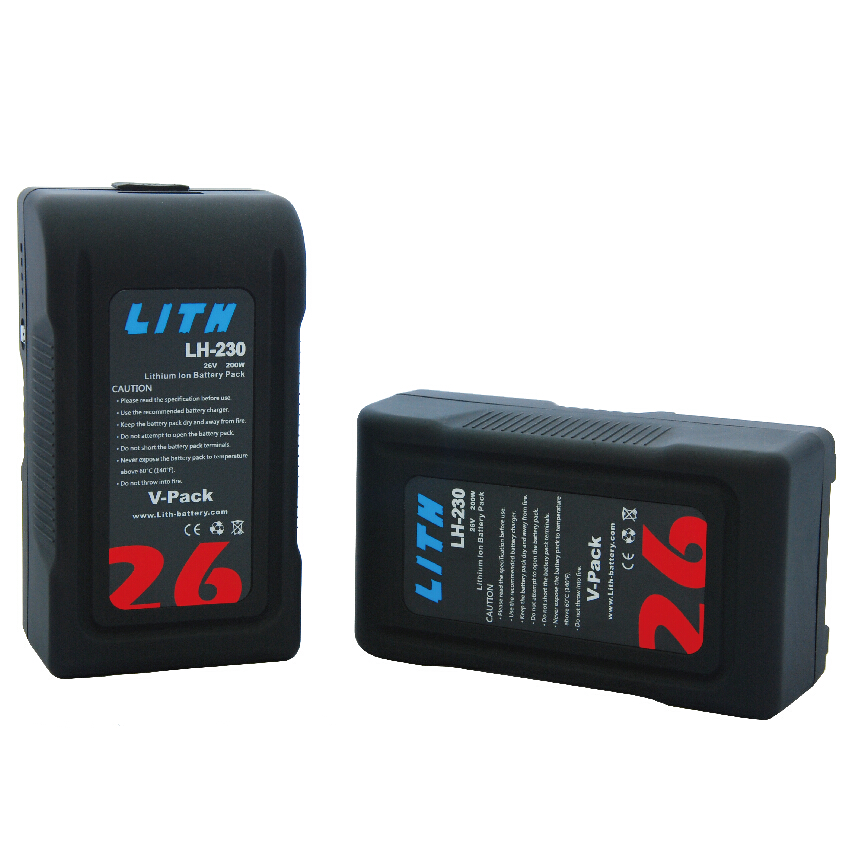

LH-230(26V 230Wh)Li-ion battery, high power battery

The new developed 26V Li-ion battery is specially designed for the high voltage film cameras like Arri Alexa or Phantom series and other equipments that also require high voltage.
The battery is featured “high discharge rate”which can withstand very high levels of current without damaging the cells.
Due to the high drain properties, it has proved to be more robust than conventional li-ion
battery packs in terms of life cycles when exposed to high duties.
Compared to the traditional 14.4V li-ion batteries, the 26V Li-ion battery is not affected by hight current so the lifespan is greatly increased.

Voltage 26V
Capacity 200Wh/8.7Ah
Max Output Current 30A
Max Input Current 5A
Mount Type V-Mount/Gold Mount
Operation temperature -30°C ~+55°C
Net Weight Approx 1.30kg
Dimension 165x88x62mm

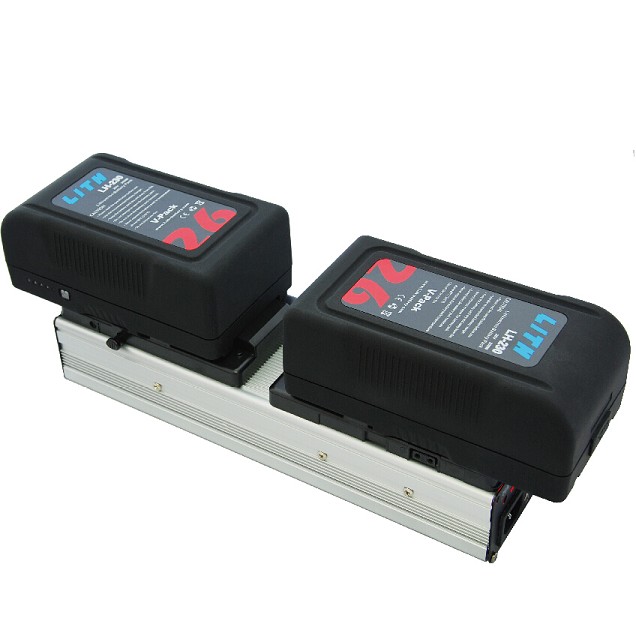

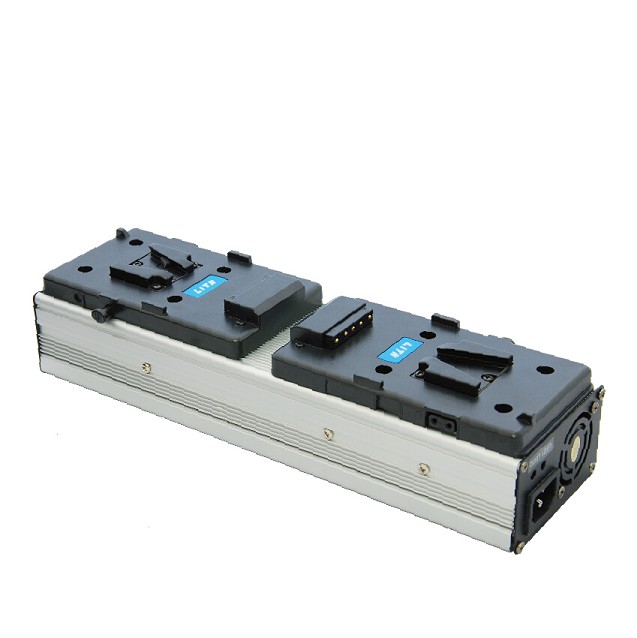

LHC-230 Charge the LH-230 battery in approximately 90 mins





Charger Output



320 x 90 x 70 (mm)


1.40Kg(exclude power cable)
